model
|
volume flownmm³/h
|
rated intake air
pressure（mpa）
|
rated discharge pressure
mpa
|
rated power
kw
|
air inlet
size
|
exhaust port size
|
overall dimensions
（length×width×height）mm
|
|
vwz-8/1-10
|
8
|
0.1
|
1.0
|
2.2
|
dn20
|
dn20
|
1000×1000×1100
|
|
wwz-15/1-10
|
15
|
0.1
|
1.0
|
3
|
dn20
|
dn20
|
1100×1000×1100
|
|
wwz-20/1-10
|
20
|
0.1
|
1.0
|
4
|
dn32
|
dn25
|
1200×1100×1100
|
|
wwz-30/1-10
|
30
|
0.1
|
1.0
|
5.5
|
dn32
|
dn25
|
1200×1100×1100
|
|
wwz-40/1-10
|
40
|
0.1
|
1.0
|
7.5
|
dn40
|
dn25
|
1200×1600×1200
|
|
wwz-60/1-10
|
60
|
0.1
|
1.0
|
11
|
dn40
|
dn25
|
1200×1600×1200
|
|
swz-120/1-10
|
120
|
0.1
|
1.0
|
18.5
|
dn65
|
dn32
|
1250×1700×1250
|

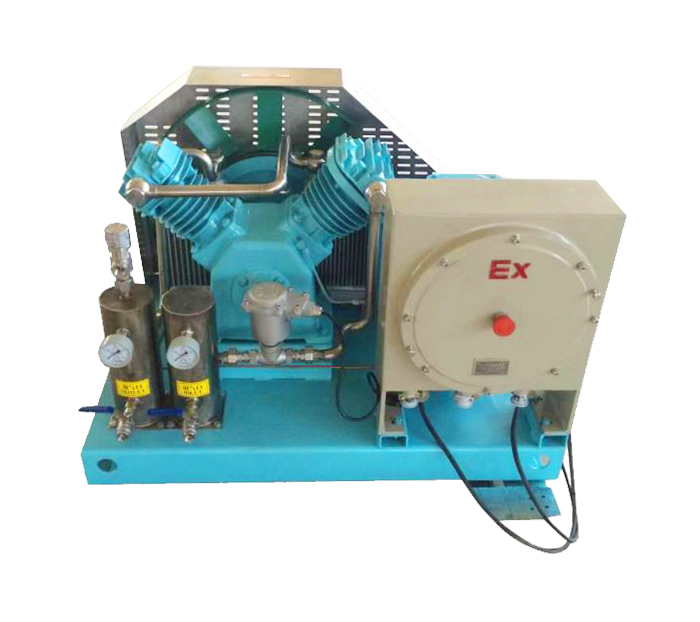

prototype model：wwz-60/1-10completely oil-free biogas compressor
product features:
completely oil-free design, the guide ring and piston ring are made of self-lubricating materials, 100% oil-free lubrication, and the bearing components are lubricated with high temperature resistant grease to avoid gas pollution during compression and ensure gas purity. the whole pipeline is made of stainless steel, which is corrosion resistant and has a long service life.
product application:
this series of compressors are designed according to the production site conditions and actual needs, and are applicable to the recovery of explosion-proof gas such as biogas.
suction pressure: 0~0.6mpa (g), discharge pressure: ≤ 5.0 mpa (g)
